Effortless Cold Room Setup: Seamless Installation for Optimal Convenience

Short Description:

The preferred form of small cold room is air-cooled units, which have the advantages of simplicity, compactness, easy installation, easy operation, and fewer auxiliary equipment.

The on-site construction and installation work is small, labor-saving, high-quality, and effective. Can meet the needs of different purposes, suitable for use in various industries and departments.

Advantage of Dong`an Easy Installation Cold Room

1. Save labor ——easy to install , can save labor cost

2. Save time —— no need to connect the copper pipe between condensing unit and evaporator , more convenient for connecting, can save 50% of installation time

3. Save space —— occupy  small space in the cold room.

Overall advantages:One stop purchase come from Dong`an.
Dong`an building sheets company is a productive enterprises Which has an independent R&D team , providing you with the best cost-effective production. Professional integrated services for design, production, and logistics make you feel more at ease.

To inquire us for anything you like now


WhatsApp Email
Material Safety Data Sheet

Product Detail

Product Tags

Components

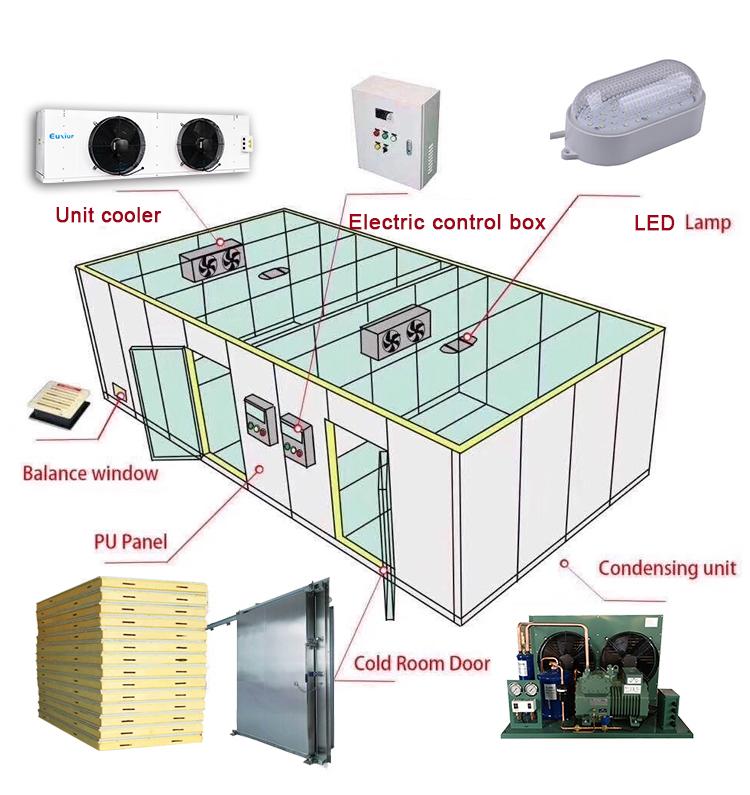

A basic Easy Installation Cold Room consists of the following components: cold room panels, air cooler, condensing unit ,electric controller, and spare parts.

p1

All about these you may have one stop purchase in Dong`an.

p2

We just need to know these information from you,then we will give you the one stop

1: What‘s the dimension of cold room : Length×Width×Height by Meter
2: What kind of goods will loading inside? What's the indoor temperature?
3: What's the industry voltage ?



Solution

p3

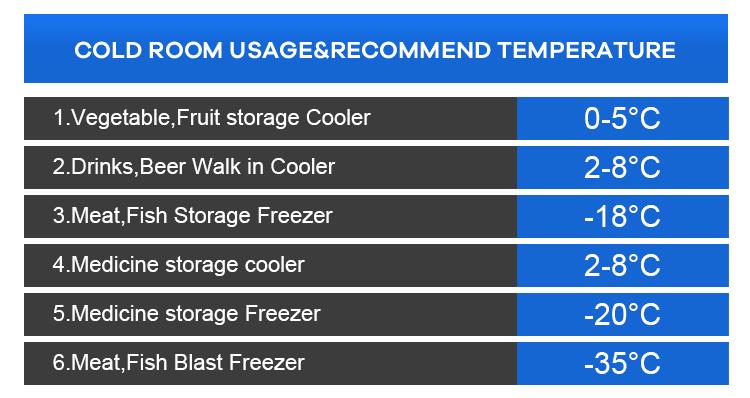

Application

p4

Easy Installation Cold Room Application

Easy Installation cold room is widely used in food industry, medical industry, and other related industries.Different application scene need different temperature ,panels,condensing unit .

Panels Differences

cold room panels

Cold room temperature Thickness of panel
5~15 degree 75mm
-15~5 degree 100mm
-15~-20 degree 120mm
-20~-30degree 150mm
Lower than -30degree 200mm
p5

Production Show

Technical Parameter

Exterior dimension(L*W*H)

6160*2400*2500mm

Interior dimension(L*W*H)

5960*2200*2200mm

compressor

DA-300LY-FB

POWER

380V/50HZ

input

3.1kw

Refrigerator capacity

6800W

Pis. Pa

2.4 Mpa

Protection Grade

IP*4

Refrigerant Incharge

R404≦3 kg

Net weight

1274 Kg

Door

800*1800mm

Brand

Dongan

FAQ

Can you send me the video to show how the machine works?

Certainly, we have made video of our machine and you may kindly contact us for more details.

What is lead time?

Normally we require about 7-15 days to finish production after deposit payment.
professional aftersales team to help client solve problem on time.

Minimum order quantity?

We also accept sample order, so order quantity is one unit is ok, we're welcome clients place trail order to test our quality.

Which country can you service to build cold room?

We can provide localization services for all customers around the world.
